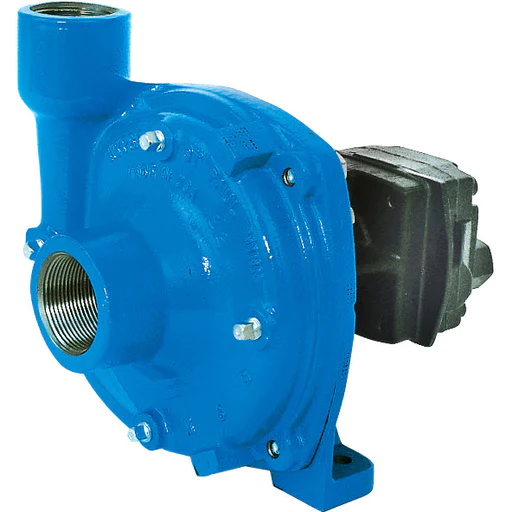

• Max flow: 114 gpm

• Max pressure: 130 psi

• Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet

• Housing: Cast iron

• Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available

• Impeller: Nylon

• Hydraulic system: Open/Closed, Max 13 gpm

• Hydraulic motor ports: 1/2" NPT inlet, 3/4" NPT outlet

• Hydraulic motor seal: Double-lip Teflon®

• Max fluid temperature: 140°F

• Weight: 26 lbs

​

part#  NS:35273

PRICE:  $960

• 1-1/4" Suction , 1" Discharge

• FMC frame mount

• Power source: PTO

• Mfg #: 46800

• Max. RPM 6000

• Max. Pressure 160 PSI And That Is At 6000 RPM'S

• Min. RPM 3200

• Min. Pressure 20 PSI And That Is At 3200 RPM'S

• Max. Gallons Per Minute 75 At 4400 RPMS

• 5/8" round shaft

​

part#  NS:31657

PRICE:  $399

• Port sizes: 1" HB inlet, 1⁄2" HB outlet

•  Shaft (D30): flanged for shaft kit

•  Shaft (D30AP-A): 3⁄4" solid thru-shaft

•  Shaft (D30GRGI and D30-B-GRGI): 3⁄4" hollow shaft with gear reduction for 5 hp gasoline engine mount

•  Pump shaft rotation: CW and CCW

•  Housing components for liquid handling: epoxy-coated

•  Diaphragms: 2, semi-hydraulic; Buna-N diaphragms (D30-B-GRGI)

•  Crankcase Oil Capacity: 18 oz.

•  Weight: 23 lbs./10.4 kg (D30); 24 lbs./10.9 kg (D30AP-A); 33 lbs./15.0 kg (D30GRGI and D30-B-GRGI)

• MAXIMUM FLOW:  9.5 gpm/36 lpm

• MAXIMUM PRESSURE:  580 psi/40 bar

• MAXIMUM RATED SPEED:  550 rpm (D30 and D30AP-A); 3600 rpm (D30GRGI and D30-B-GRGI)

• MAXIMUM FLUID TEMPERATURE:  140°F/60°C

​

part#  NS:35031

PRICE:  $780.00

• Max flow: 103 gpm

• Max pressure: 170 psi

• Max speed: 6000 rpm

• Port sizes: 1-1/4" FNPT inlet, 1" FNPT outlet

• Housing: Cast iron

• Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available

• Impeller: Nylon

• Shaft: 5/8" solid

• Pump shaft rotation: CCW

• Max fluid temperature: 140°F

• Weight: 18 lbs

​

part#  NS:32175

PRICE:  $420.00

62 gpm, 150 psi. Max RPM 1000.

Port sizes are 1-½ in. NPT. Pump shaft rotation is CCW (CW available). 15/16 in. Solid Shaft.

Max. flow: 33.1 gpm/125 lpm at 540 rpm and 62.1 gpm/235 lpm at 1000 rpm.

​

part#  NS:28254

PRICE:  $447.00

​

Max flow: 140 gpm
Max pressure: 170 psi
Max speed: 6000 rpm
Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
Housing: Cast iron
Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
Impeller: Nylon
Shaft: 5/8" solid
Pump shaft rotation: CW
Max fluid temperature: 140°F
Weight: 19 lbs

​

part#  NS:35409

PRICE:  $669.99

20% OFF all Pelican products

while supplies last

72 LED's

6 Patterns

​

Regular price:  $569.99

Sale price:  $469.99

​

part#  05-3347

​

7,000 lbs axles

Slipper springs

Fenders

Wheels and tires

60" frame center



Regular price:  $1799.99

Sale price:  $999.99

​

Part#  05-1025rg
